Hardware required for accessible door passage shall be mounted no higher than 48 in 1220 mm above finished floor.

Ada door vision lite height. Ada section 404 2 11 requires that at least one of the vision panels in a door and sidelites adjacent to a door be no more than 43 inches 1090 mm above the floor line to provide visibility and safe access for all. Vision lite placement doors and side lights adjacent to doors containing one or more glazing panels that permit viewing through the panels shall have the bottom of at least one glazed panel located 43 inches maximum above the finish floor. In the previous edition of the ada standard section 4 13 9 included this statement. The reason the lite above 66 doesn t have to comply with the ada and a117 1 mounting height requirements is because it is not meant as a vision lite but as a way to provide light transmission through the door.

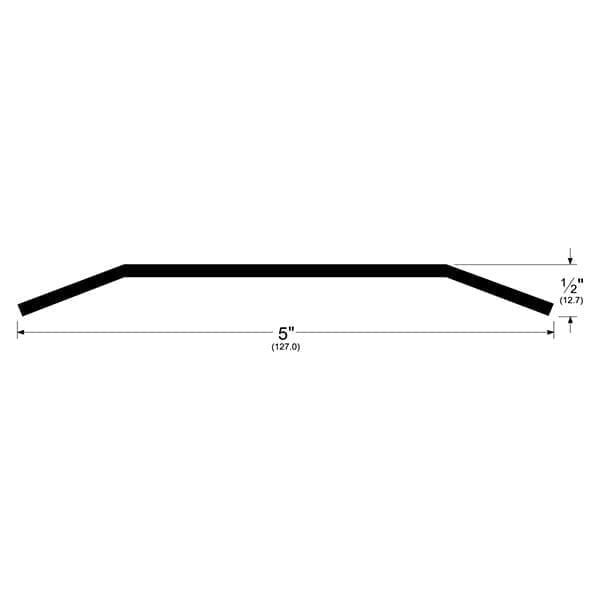

In order to meet accessibility codes the doorstep can have a maximum height of a inch for swinging and sliding doors. The threshold should be beveled with a maximum slope of 1 2. Fv vision lite to vary with door height. The 2010 ada standards for accessible design effective 03 15 2012 include an important change relative to the mounting height of hardware.

Doors doorways and gates 206 5 and 404 compliance is required for doors doorways and gates providing user passage on accessible routes. Ada requirements seek accessible vision areas in doors. Slowly opening low powered automatic doors shall comply with ansi a156 19 1984. Door vision lites with the lowest part more than 66 inches from the finish floor or ground as these types of lites are used.

At least one accessible door. Learn how doors must comply with ada regulations. Dimension from bottom of door to center line of fv lite to remain constant at 63. Minimum dimension for bottom rail at all louvers to be 12.

Vision windows and viewing panels on doors 2012 tas 2010 ada all doors on an accessible route or within employee circulation paths unless exempt by 206 2 8 are required to comply with 404 doors. Fnv fv fg fl 8 6 center line of rail located at 36 3 4 from bottom of door minimum dimension for bottom rail of glazed doors to. If an automatic door is used then it shall comply with ansi bhma a156 10 1985. Such doors shall not open to back check faster than 3 seconds and shall require no more than 15 lbf 66 6n to stop door movement.

4 13 12 automatic doors and power assisted doors. Minimum number at least 60 of public entrances must be accessible in new construction in addition to entrances directly serving tenancies parking facilities pedestrian tunnels and elevated walkways.
